MOBILE TIRE STEPVAN

18′ 20′ & 22′ BODY LENGTHS | LEASE-TO-OWN OPTIONS

If you need more space than a Sprinter van offers, a great option to consider is the mobile tire stepvan!  With 18′,  20′ and 22′ body length options, it provides a mobile working area that is comfortable and efficient. The full-walkthrough door gives you direct access from the cab to your workspace.  And a fold-out ramp makes it easy to get the tires in and out of the mobile tire stepvan.  Our Ford and Freightliner options are gas-powered and easy to drive.

Flexible lease-to-own options are available on all of our mobile van and truck solutions.  Delivery nationwide.

Call today @ (513) 600-6223 or simply fill out the form above.  We look forward to helping you bring your mobile vision to life!

CONTACT REQUEST

Fill out the simple form below and we will contact you right away !



via emailvia text

UP-FIT SPECIFICATIONS

  • Hunter TC39 Tire Changer
  • Hunter Smart Weight Pro Wheel Balancer
    (No Hood)
  • Vanair Inverter/Air Package
  • Two (2) 48V 100AH BATTERY
  • One 6K Watt Inverter 120/240V
  • Power Distribution Module
  • One Converter,48V TO 12V 60A & PARTS
  • One Charger, Shore 120VAC TO 48V & PARTS
  • One (1) Charger,12V/24V TO 58V 30A & PARTS
  • Vanair Battery Management System -7” Monitor
  • One (1) 20CFM Compressor – compressor will be vented through exterior panel of step van- Compressor will be enclosed with sound proofing
  • Vibration Isolator Kit
  • One (1) 20GAL tank assy with check valve
  • One (1) Oil/Water Separator
  • Misc Hoses and Fittings – Hose reel would be installed at rear of cargo area with Madison access door
  • Two (2) Six Drawer Module cabinets wheel balancer on bulkhead wall for miscellaneous storage – TPMS sensors, valve stems, etc

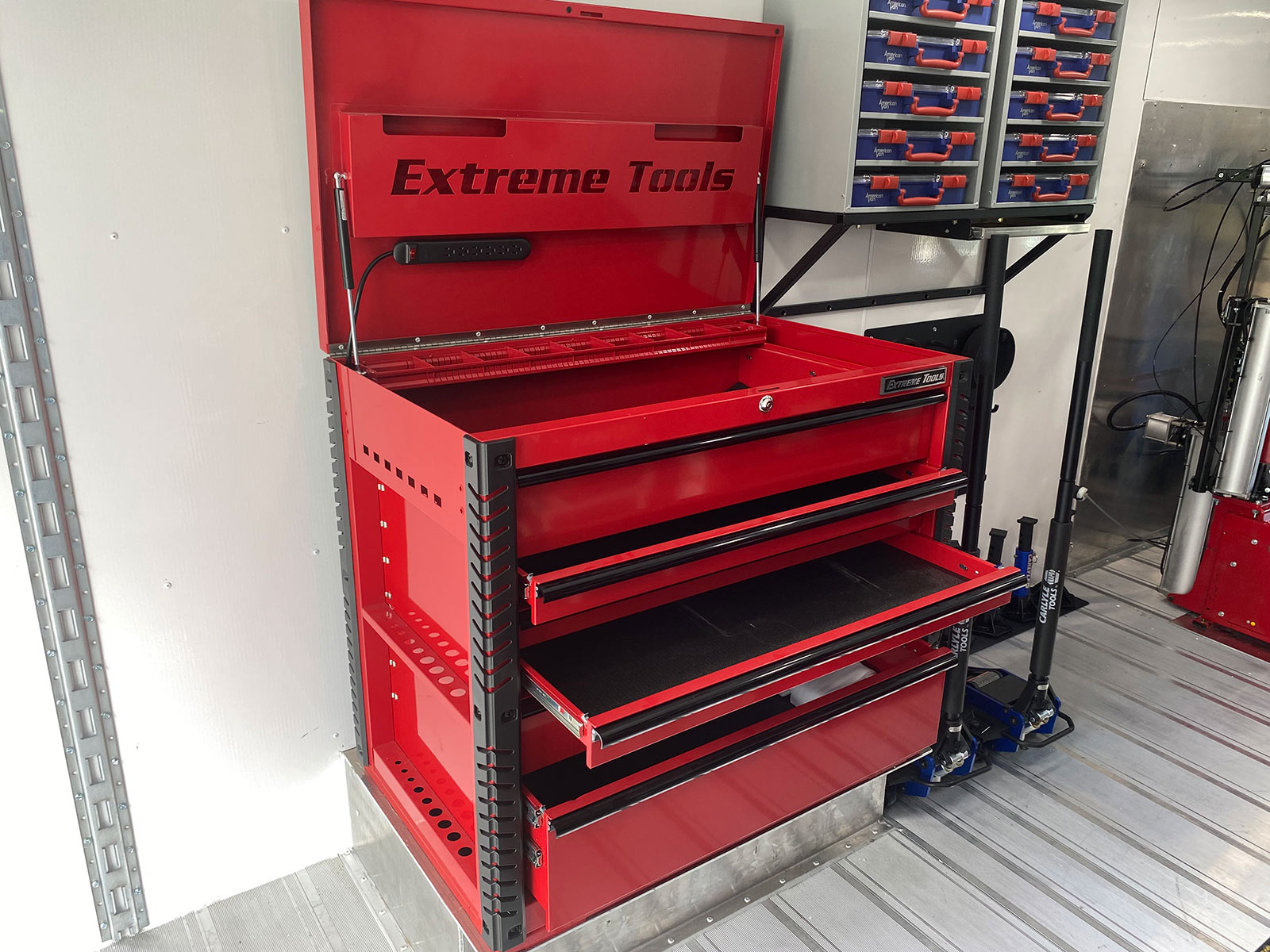

  • Extreme Tools Professional Series Tool Box on drivers side wheel well41in. 6 drawer rolling flip top tool cart is 41. 75in.W x 25.75in.D x 43in.H
  • Pit Boss Open storage on driver’s side floor next to next to tire changer

UP-FIT SPECIFICATIONS (con’t)

  • Two (2) Six Drawer Module cabinets wheel balancer on bulkhead wall for miscellaneous storage – TPMS sensors, valve stems, etc
  • Extreme Tools Professional Series Tool Box on drivers side wheel well41in. 6 drawer rolling flip top tool cart is 41. 75in.W x 25.75in.D x 43in.H
  • Pit Boss Open storage on driver’s side floor next to next to tire changer

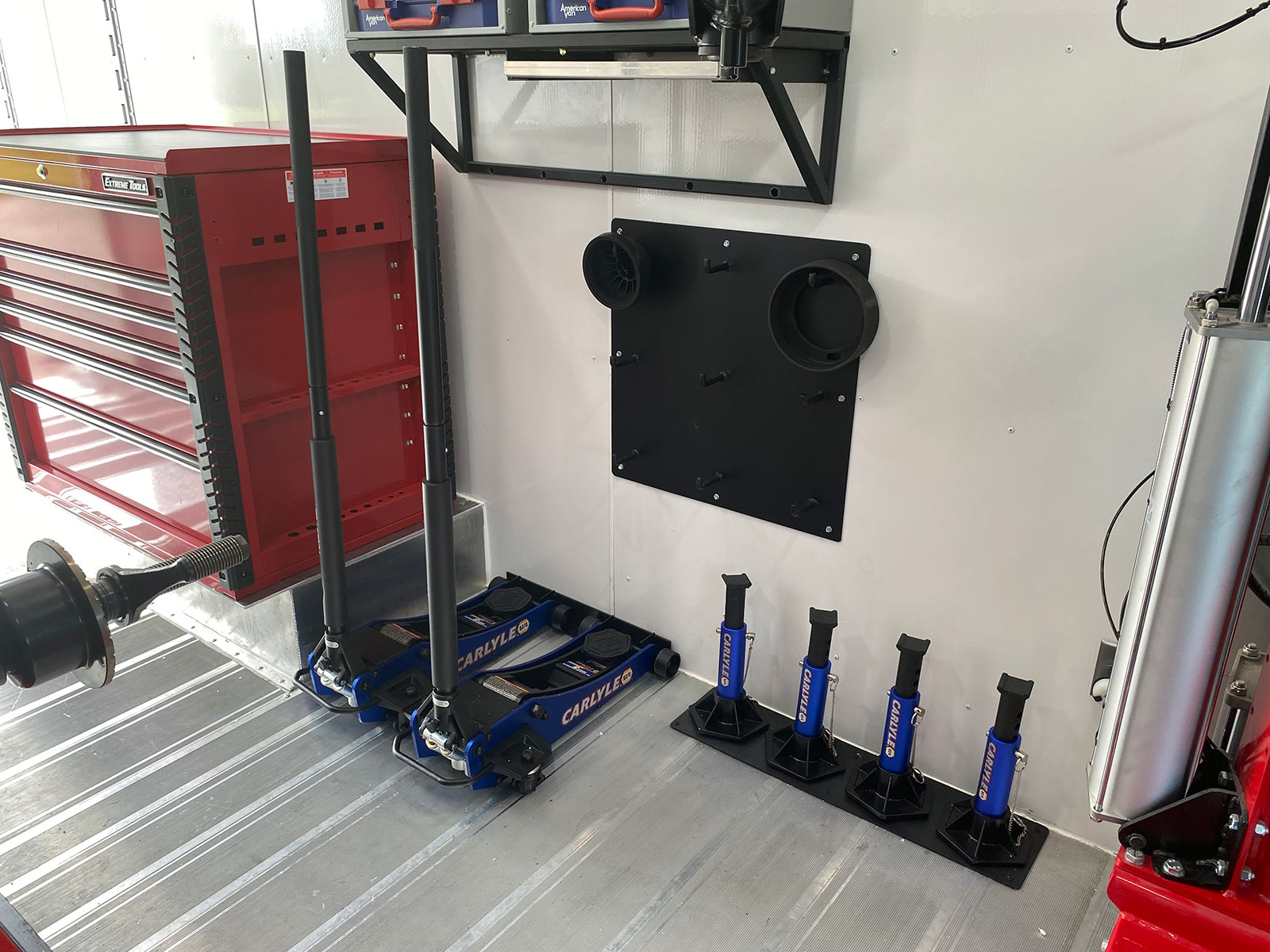

  • Two (2) 2 Ton Lightweight Aluminum Floor Jacks Floor jack and floor mounting brackets to secure jacks during
  • Four (4) 3 Ton jack stands and mounting pocket to secure jack stands during transport
  • Five (5) 6” LED lights in ceiling
  • Fantastic Vent with 3 speed fan on Roof for ventilation
  • 3 speed circulating fan for work area
  • Air hose reel with 50’ ft of ½” air hose @ rear of cargo area with Madison access door
  • 3/8” FRP Board and Relectix insulation on walls – White
    • .080 Aluminum, reflectix and 1” foam insulation on ceiling
  • Lazer Align front suspension after equipment has been installed
  • Collet Holder on wall next adjacent to tire changer
  • Three (3) Rows of Vertical ETRAC on side walls @ rear of cargo area behind wheel wells

ELECTRICAL PANEL

  • Bass Panel on driver’s side wall
  • One (1) Main 30A Breaker
  • Ten (10) 20A Breakers
  • 12/3 Wire 120V
  • 10/3 Wire Main from BP to Bass Panel and Shoreline
  • Labels
  • Shoreline 115v single phase – charge Vanair Battery
  • 115v outlets in cargo area – Charging station for battery powered tools
  • 115v GFI Exterior outlet
  • 230v outlets for Tire Changer and Wheel Balancer

OPTION

  • Handi Ramp 36” x 10’ 1000LB Capacity at rear door entrance

MOBILE OIL OPTION
